Scope of Delivery:

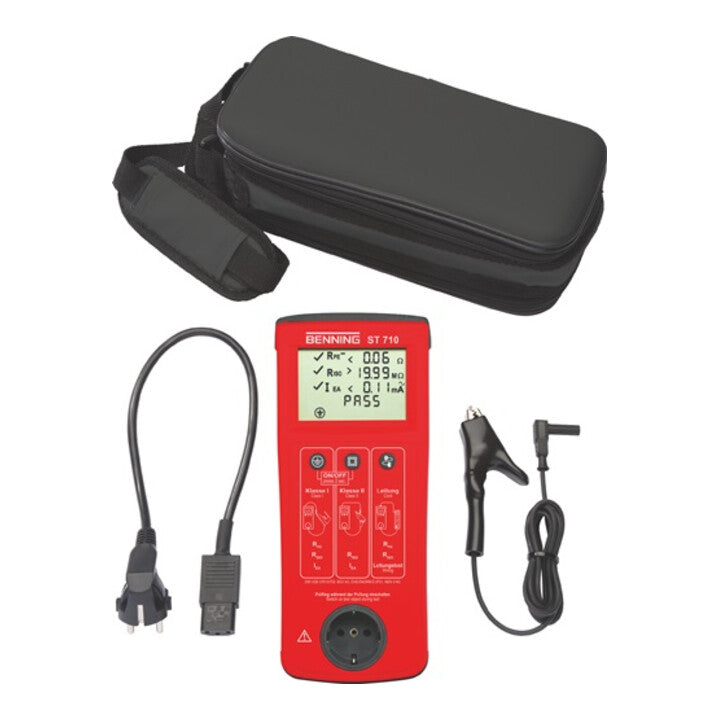

- Appliance tester ST 710 2500 test samples/with test device/test lead
- Appliance tester ST 710, carrying case, test lead with tapping terminal, IEC connection lead, batteries (6 x type AA) - for replacement batteries see art. no. 4000 901 811 Optional accessories (not included in the scope of delivery) 300 test labels (see art. no. 4000 828 886)No. 4000 828 886) Measuring adapter CEE earthing contact plug in 16 A / 32 A (see item no. 4000 828 901 / 4000 828 902) Leakage current clamp BENNING CM 9-1 (see item no. 4000 828 949)
Product Description:
for safety testing of electrical appliances/work equipment, such as power tools, motorised appliances, lights, extension leads, household appliances in accordance with DIN VDE 0701/0702 DGUV Regulation 3 - simple operation via three buttons - the complete test can be carried out within 10 seconds independently of the mains - automatic test sequence for Class I, II (III) appliances - measurement of insulation resistance, protective conductor resistance, protective conductor and touch current according to the equivalent leakage current method - cable test incl. RPE and RISO - continuity and short-circuit test of the phase/neutral conductor - voltage at external protective contact socket (L-N, L-PE, N-PE) - three-phase test socket (L-N, L-PE, N-PE) RPE and RISO - continuity and short-circuit test of the phase/neutral conductor - voltage at external protective contact socket (L-N, L-PE, N-PE) - three-phase test objects can be tested via optional measuring adapter (measuring adapter is not included in the scope of delivery) - limit values preset in accordance with VDE standard Special product benefits: Graphic display, automatic test sequence with good/bad statement, battery capacity for 2500 test objects, free download of test protocols (Excel, PDF) at www.benning.de
Technical Data:
- Width: 115mm
- Length: 270mm
- Height: 55mmNote on the disposal of batteries and rechargeable batteries
- As we sell batteries and rechargeable batteries or devices containing batteries and rechargeable batteries, we are obliged under the Battery Act (BattG) to inform you of the following: The symbol of the crossed-out dustbin on batteries or accumulators means that they must not be disposed of with household waste after use. If batteries or accumulators contain mercury, cadmium or lead, you will find the respective chemical symbol (Hg, Cd or Pb) below the symbol of the crossed-out dustbin. Every user of batteries or accumulators is legally obliged to return old batteries and accumulators. You can do this free of charge at a retail outlet or other collection point in your area. You can obtain the addresses of suitable collection centres in your area from your city or local authority. For batteries that contain more than 0.0005 per cent mercury by mass, more than 0.002 per cent cadmium by mass or more than 0.004 per cent lead by mass, the chemical designations of the pollutant used can be found under the waste bin symbol. The chemical designations have the following meaning: Pb: Battery contains lead Cd: Battery contains cadmium Hg: Battery contains mercury
