Description

Scope of Delivery:
- Adjustable clamping lever GN 300 d1 M 8 mm

Product Description:
are preferably used when the clamping range is limited and a certain clamping position is desired - by lifting (pulling) the handle, the serration is released and the clamping lever can be swivelled into the most favourable clamping position - when "released", the handle automatically locks into place again - handle body - die-cast zinc - threaded bush and retaining screw - steel, burnished further dimensions and colour variants on request

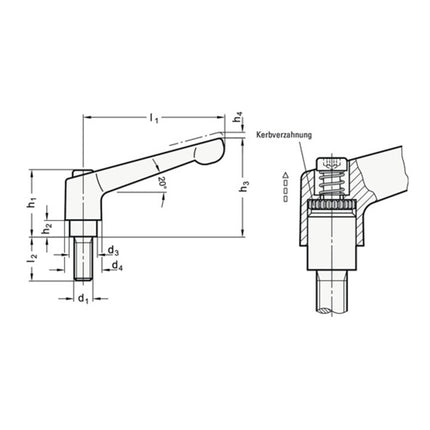

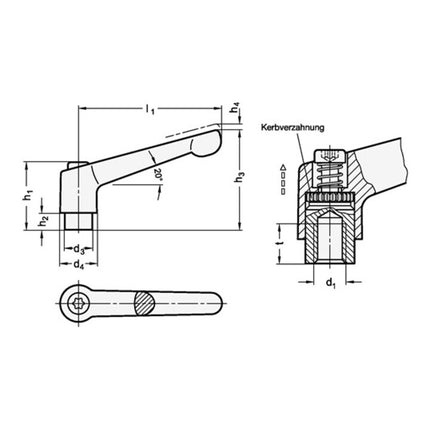

Technical Data:
- d4: 17.5mm
- h2: 6.5mm
- h4: 4mm
- l2: -mm
- l1: 63mm
- h1: 31mm
- d1: M 8mm
- d3: 13,5mm
- h3: 45mm

For commercial use, please observe the building regulations!

Product form

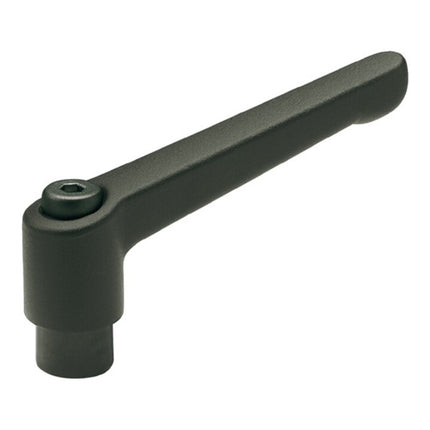

GANTER Adjustable clamping lever GN 300 d1 M 8 mm ( 4601000574 )

    SKU: 124250  EAN: 4045525151307  Condition: New
    €14,24
