Description

Package contents:

- 800x HECO MULTI MONTI plus F Screw Anchor 10.0 x 60mm

Product description:

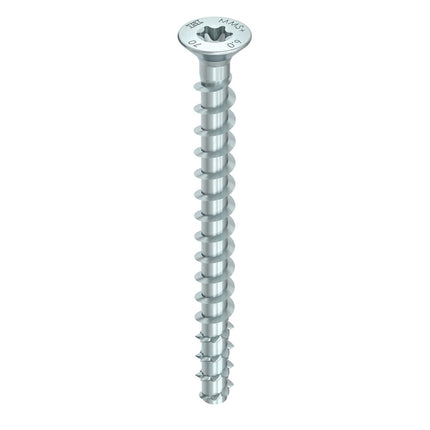

The MULTI MONTI plus screw anchor from the manufacturer Heco is an enhancement of the concrete screw MULTI-MONTI. A great advantage of this screw is that, without the need for wall plugs, the certified screw anchor is driven directly into a pre-drilled hole, where it is immediately loadable. Its reinforced toothed concrete thread cuts an internal thread into the building material while screwing. This creates a positive locking connection, which is subsequently used for the anchoring. The MULTI-MONTI-plus system is not only fast and easy to mount, but also ensures a secure connection. The screws can be mounted close to the edge and without a torque wrench, what´s more they can be removed and reused after checking the threads condition.

Technical specifications:

Manufacturer: HECO
Manufacturer Number: 54267
Manufacturer Designation: MULTI MONTI plus F
Clamping Strength, tfix Standard: 25mm

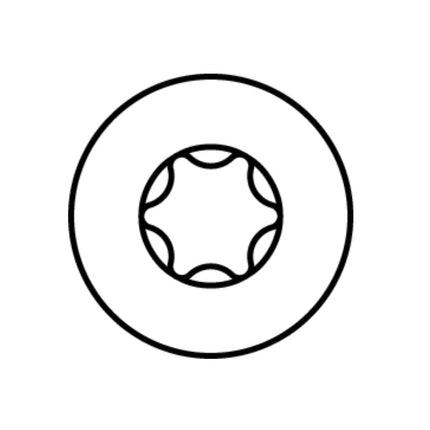

Size of Recess : T25
Drill Diameter, d0: 4.0mm
Drill Hole Depth, h Standard: 40mm
Embedment, hnom Standard: 35mm

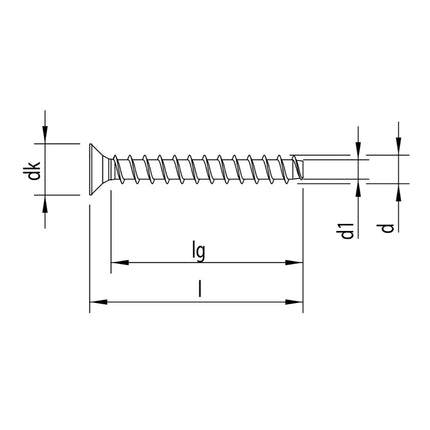

Thread Length, lg: 55mm
Head Diameter, dk: 8.7mm
Diameter, d: 5.0mm
Length, l: 60mm
Head Form: Countersunk Head
Recess: T-Drive
Material: Carbon Steel
Surface: Blue Galvanized, A2K

Specifications

• Hersteller: HECO
• Gewicht: 4760 g
• Schrauben-Ø: 5 mm
• Länge: 60 mm
• Anzahl: 800 Stück
• Bearbeitbares Material: Beton
• Schraubengewinde: Vollgewinde
• Schraubenkopf: Senkkopf
