Description

Package contents:

- 50x HECO MULTI MONTI plus SS Screw Anchors 10 x 60mm

Product description:

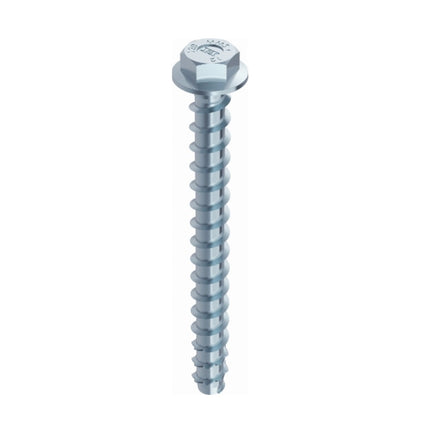

The MULTI MONTI plus anchoring screw from HECO is the improved version of the MULTI MONTI concrete screw. Its main advantage is that it can be directly inserted into a pre-drilled hole without requiring a dowel, and can be stressed immediately. It features a functional point with reinforced teeth enabling it to tap into the building material as it is being screwed in. In addition, its ideal interaction between core and thread geometry means it's easy to screw in and provides optimum stress relief. The MULTI MONTI plus can be fitted close to the edge without the need for a torque spanner. It can also be dismantled and reused. Heco is a leading manufacturer of screws, distinguished by its high-quality products and long-standing reputation.

Technical specifications:

Manufacturer: HECO
Manufacturer's number: 48439
Manufacturer's designation: MULTI MONTI plus SS

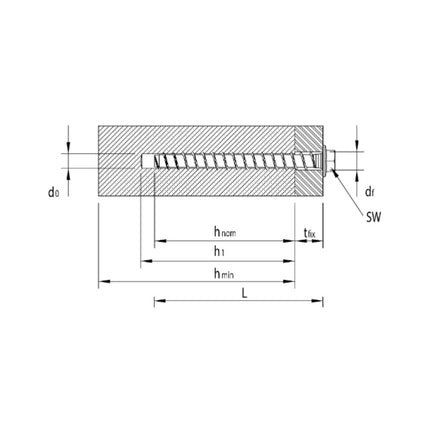

mounting thickness, tfix1: 10 mm
drive size: SW-13
Drill diameter, d0: 8.0 mm
Drill hole depth, h1: 60 mm
Through hole in attachment, df: 12.5 mm
Screw-in depth, hnom1: 50 mm
Thread length, lg: 56 mm
Head diameter, dk: 19.0 mm
Recommended max. power output of the impact wrench, Tmax1: 250 Nm
Minimum component thickness, hmin: 100 mm
Min. edge distance, cmin: 35 mm
Diameter, d: 10.0 mm
Length, l: 60 mm
Head design: Hexagonal head with pressed-on washer
Drive: hexagonal head
Surface: HP-coated
Material: Carbon steel
European technical assessment: ETA-15/0785
Fire resistance class: F120/R120
Sprinkler approval: Yes
General building authority approval: Z-21.1-2103, Z-21.8-2061

Product form

HECO MULTI MONTI plus SS Screw Anchor 10.0 x 60mm Concrete screw, hexagonal head, galvanised blue, A2K 50 pcs (2x 48439)

SKU: 26119 EAN: 4064677024338
