Description

Scope of Delivery:

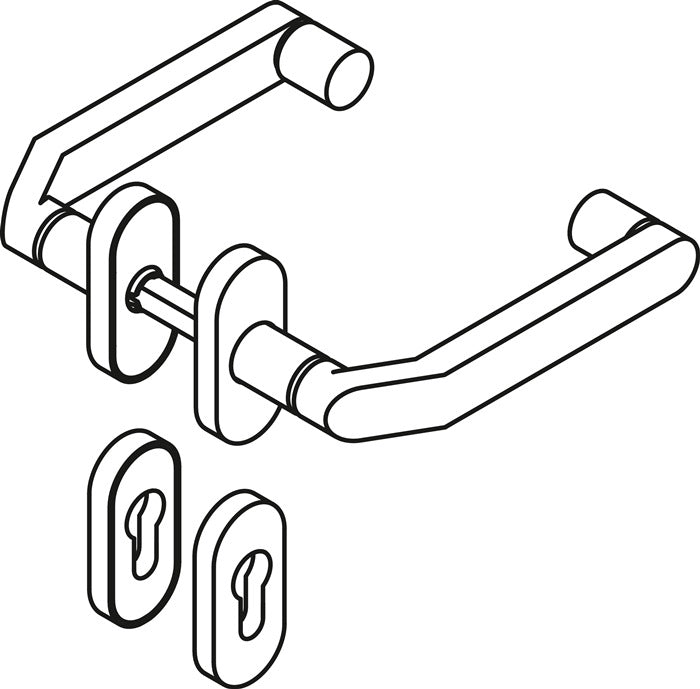

- Escutcheon set 270XAH01.340 Stainless steel

Product Description:

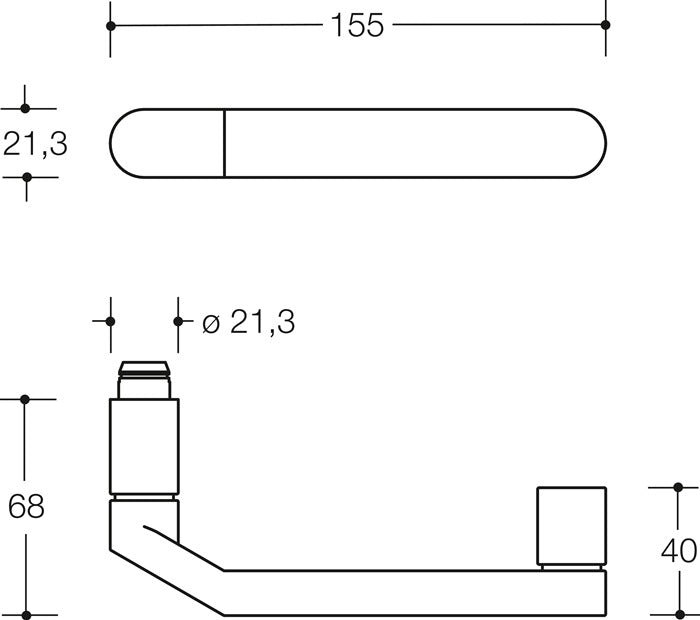

in H technology with roses to DIN 18255 and DIN EN 1906 made of stainless steel, satin finish, consisting of: Lever handle model 273X... made of stainless steel (1.4301), lug diameter 21.3 mm, with lug guide and locking groove, with grub screw M5 as additional fixing of the lever handle with the square spindle for optimum force transmission into the door leaf. The lever handle fulfils the guidelines of the Bundesverband der Unfallkassen e. V. (BUK) - safety distance to the closing edge 25 mm. The lever handle fulfils the requirements of DIN EN 179. Installation by simply snapping the lever handle into the pre-mounted lower parts on the door. The latching mechanism can be released again using a disassembly spanner. Rosettes 315.21X... and 316X..., substructure 315.21X... in plastic/steel composite construction with black zinc/nickel surface for optimum corrosion protection, integrated hold-open module with spring support, can be used DIN left and DIN right, to support the lock for a longer service life. Fixed pivot bearing of the lever handle with automatically engaging all-round locking and 5 mm bearing point as a maintenance-free plain bearing with elastic compensation area to compensate for possible installation inaccuracies. Rosette cover cap, oval, made of stainless steel (1.4301), diameter 55 mm, 12 mm high, 1.5 mm wall thickness. Designed and tested for the contract sector, usage category to DIN EN 1906 - class 4 fitting, with square spindle 8 mm, for door thickness 38-48 mm - lever handle length 155 mm - framed door fitting

Technical Data:
- Fastening system: H technology

For commercial use, please observe the building regulations!

Product form

HEWI Escutcheon set 270XAH01.340 Stainless steel ( 3000207496 )

    SKU: 74251  EAN: 4014885668978
    €313,65
    Incl. VAT
