Scope of Delivery:

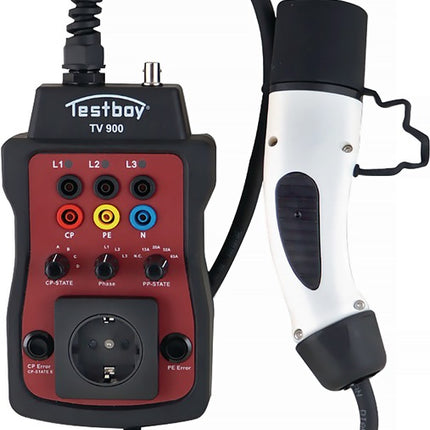

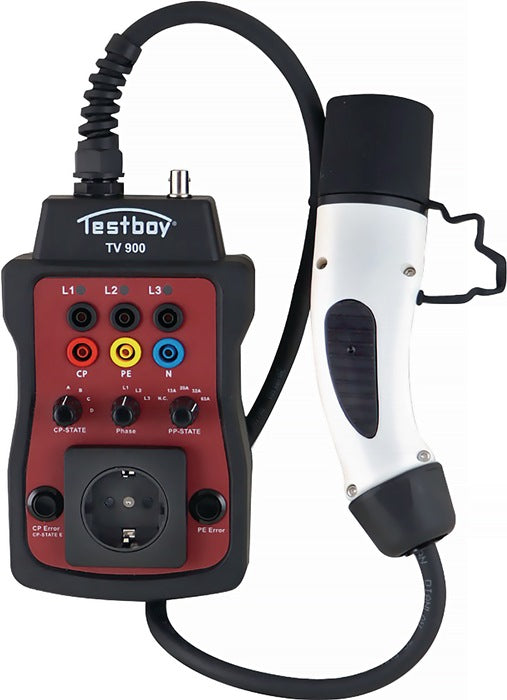

- TV 900 charging station test adapter for type 2 charging stations
- Standby bag
Product Description:
for testing type 2 charging stations standardised in Europe - the TV 900 takes over communication with the charging station and simulates a connected electric vehicle - an installation tester or a multimeter (not included) can be connected via the 4 mm banana sockets - the built-in LEDs indicate whether and how many phases are connected - one of the three phases can be switched to the built-in earthed socket as required (this allows each phase to be tested individually)
Technical Data:
- Input voltage: 230 V / 400 V (1-phase / 3-phase) Frequency: 50 / 60 Hz Proximity Pilot (PP): Yes Simulation of charging cable: NC / 13 A / 20 A / 32 A / 63 A Control Pilot (CP): Yes Simulation of vehicle status: A (not connected) B (connected and ready to charge) C (connected and charging) D (connected and charging with ventilation) Simulation CP error: E (communication error) Simulation PE error: protective conductor interrupted Connector plug: Type 2 Phase display: Yes (via LEDs L1/L2/L3) Banana sockets: 4 mm connections for 3-phase tester (installation tester), multimeter BNC socket: Yes (For using an oscilloscope) For detailed operating instructions, see QR code
- Technical data:Width: 120mm
- Length: 275mm
- Weight: 0.96kg
- Height: 60mmNote on the disposal of batteries and rechargeable batteries
